Infrastructure

Machinery And Equipments


  • CNC Router 5ftx10ftx2ft

  • In House Lathe Machine having length of 10’[Centre Height 23”]

  • Ø25mm Radial Drilling Machine with 15”x24” bed slider, Bend Saw Machine(28in), Electrical Saw Machine.

  • 2 Nos. of Vertical Drilling Machines

  • VMC

  • 2 Nos. of 36” X 36” surface plate for inspection & marking, Hand bend saw, Hand planer, Hand sander, Hand Jig saw.

  • Vernier Calipers From 6” to 60”, 1000mm Deep gauge.

  • 2 Nos. of 24” height gauge, Thickness Gauges Up to 90mm



Capabilities

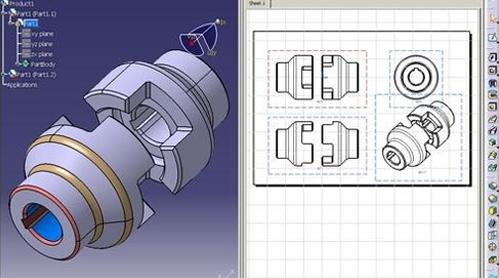

Advance Design Module.

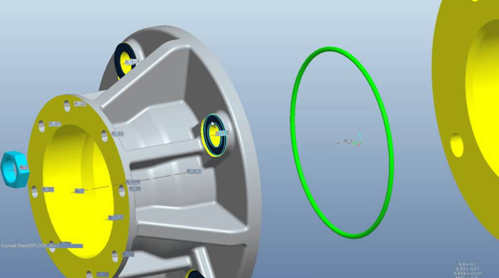

For 3-D model to Cam.


  • 3-D Model Designer 01

  • Engineers 02

  • CNC Operators 05

  • Pattern Makers 04

  • Managerial Support 02

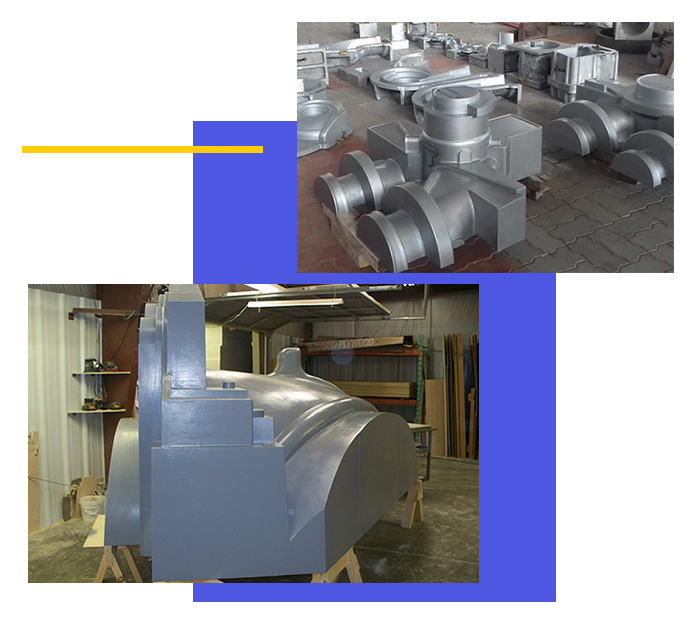

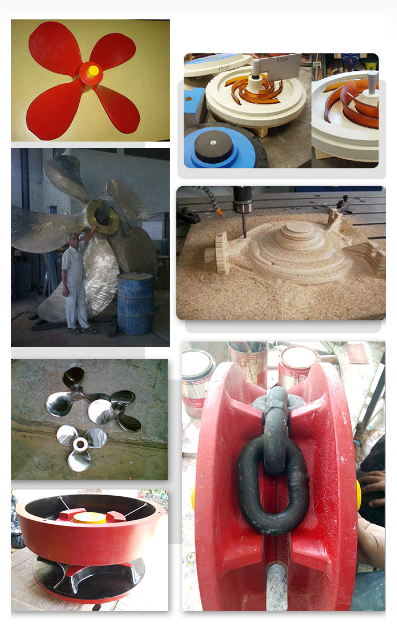

We are capable of build patterns from 1 inch to 15 feet, while offering a variety of materials to choose from. Using wood, metal, plastic, and fiberglass allows us to build short-run tooling and long-run tooling depending on the customer specifications. We are a full service pattern shop we build new patterns, duplicate old patterns, modify existing tooling, rig and gate for foundries, and trouble-shoot tooling problems. We help engineer new tooling thus helping foundries produce the desired product.
